Step By Step: Install Oracle Utilities Customer Care and Billing V2.5.0.1 on Oracle Enterprise Linux.


Step By Step: Install Oracle Utilities Customer Care and Billing V2.5.0.1 on Oracle Enterprise Linux.
http://www.OracleArchitect.com
http://www.OracleDBA.org

Bhavin Hingu
Bhavin@Hingu.net

This document shows the step by step process of installing Oracle Utilities Customer Care and Billing (CC&B) 2.5.0.1 on Linux x86_64 bit architecture. In this setup, database and application tier resides on the same host. The setup uses embedded weblogic servers and demo certificates that comes with the CCB software. The CISADM database components will be freshly installed as opposed to import them from the demo import dumpfile comes with the install media.

Hardware used in the setup:

  • Intel X86_64 Quad Core CPU with 8GB RAM, 1TB storage. – Database and Application share the same box
  • Windows based client machine /laptop (Only needed for Initial install and not required for Demo Install/Upgrade of database)

Software Used in the setup:


Documents/Notes followed:
  • Oracle Utilities Customer Care and Billing Install Guide for Release 2.5.0.1 (Part No. E61797-02)
  • Oracle Utilities Customer Care and Billing Database Administrator Guide for Release 2.5.0.1 (Part No. E61798-02)
  • Oracle Fusion Middleware - Installing and Configuring Oracle WebLogic Server and Coherence (E57897_01)
  • 3rd party software component specific install/configure guide that comes with the install media.

Roadmap for Installing Oracle Utilities Customer Care and Billing V2.5.0.1:

Prepare The Linux Server:
  • Install Linux prerequisites for the Oracle Database 12c and CCB Application.
  • Create Group/User id for Application owner (cissys – cisuser, oinstall).
  • Create Group/User id for Oracle 12c R1 (12.1.0.2) database (oracle – oinstall, dba).
  • Create required directory structure for the installation.

Prepare The Database Tier:
  • Install Oracle 12c R1 database software (oracle)
  • Create Listener process
  • Create CCB specific tablespaces/schemas/roles/permissions.

Prepare the Windows Client machine:
  • Install JDK 8 Update 66
  • Install Oracle database 12c Client software (32 bit)

Install the CISADM schema (FW and CCB database components):
  • Install Application Framework Database Component.
  • Install Prerequisite Database Single Fixes.
  • Install the Oracle Utilities Customer Care and Billing Database Component.
  • Perform post-schema Install tasks

Install 3rd Party software (Application Prerequisite Software) under application owner (cissys):
  • Set up the environment variables (.bash_profile/.profile).
  • Install Oracle 12.1.0.2 client.
  • Install JDK 8 update 66.
  • Install Hibernate 4.1.0.
  • Install Oracle WebLogic Server 12.1.3

Install Oracle Application FW 4.3.0.1:

Install Oracle Utilities Customer care and Billing:
  • Install the Prerequisite Rollup Patch
  • Install CCB V2.5.0.1

Post Install Tasks:
  • Generate the certificate
  • Change the SYSUSER password from WebLogic Admin Console
  • Restart the application stack
  • Login to the Application

Environment Information:

Apps Tier
SPLENVIRON (Environment Name)
HINGU
SPLEBASE (Environment Mount point)
/ouaf/ccb
SPLOUTPUT (Logfile Mount)
/ouaf/ccb/sploutput
JAVA_HOME
/ouaf/java/jdk1.8.0_66
WL_HOME
/ouaf/middleware/wlserver_12.1.3/wlserver
ORACLE_CLIENT_HOME
/ouaf/dbclient/12102
HIBERNATE_JAR_DIR
/ouaf/hibernate
Application OS user (owner)
cissys:(groups - cisuser, oinstall)
OS Platform
Oracle Enterprise Linux 6.7 (64 bit)
HOSTNAME
ccbapps-node1.hingu.net (192.168.2.15)
OS Platform
Oracle Enterprise Linux 6.7 (64 bit)



DB Tier
RDBMS
Oracle 12cR1 (12.1.0.2)
ORACLE_BASE
/u01/app/oracle
ORACLE_HOME
/u01/app/oracle/product/db12102
Database OS user (owner)
oracle:(oinstall, dba)
Database Name
CCBDB.hingu.net
DB LISTENER
LISTENER
DB Listener port
TCP:1521
OS Platform
Oracle Enterprise Linux 6.7 (64 bit)
HOSTNAME
ccbapps-node1.hingu.net (192.168.2.15)




Prepare the Linux Box for the CCB 2.5.0.1 Installation:

Install Minimum Required RPMs:

binutils-2.20.51.0.2-5.43.el6.x86_64
compat-libstdc++-33-3.2.3-69.el6.x86_64
compat-libstdc++-33-3.2.3-69.el6.i686
compat-libcap1-1.10-1.x86_64
gcc-4.4.7-16.el6.x86_64
gcc-c++-4.4.7-16.el6.x86_64
glibc-2.12-1.166.el6.x86_64
glibc-2.12-1.166.el6.i686
glibc-common-2.12-1.166.el6.x86_64
glibc-devel-2.12-1.166.el6.x86_64
glibc-devel-2.12-1.166.el6.i686
glibc-headers-2.12-1.166.el6.x86_64
kernel-headers-2.6.32-573.el6.x86_64
ksh-20120801-28.el6.x86_64
libaio-0.3.107-10.el6.x86_64
libaio-0.3.107-10.el6.i686
libaio-devel-0.3.107-10.el6.x86_64
libaio-devel-0.3.107-10.el6.i686
unixODBC-2.2.14-14.el6.x86_64
libgcc-4.4.7-16.el6.x86_64
libgcc-4.4.7-16.el6.i686
libstdc++-4.4.7-16.el6.x86_64
libstdc++-4.4.7-16.el6.i686
libstdc++-devel-4.4.7-16.el6.x86_64
libstdc++-devel-4.4.7-16.el6.i686
libxcb-1.9.1-3.el6.x86_64
libxcb-1.9.1-3.el6.i686
libXau-1.0.6-4.el6.x86_64
libXau-1.0.6-4.el6.i686
libX11-1.6.0-6.el6.x86_64
libX11-1.6.0-6.el6.i686
libXi-1.7.2-2.2.el6.x86_64
libXi-1.7.2-2.2.el6.i686
libXtst-1.2.2-2.1.el6.x86_64
libXtst-1.2.2-2.1.el6.i686
libXext-1.3.2-2.1.el6.x86_64
libXext-1.3.2-2.1.el6.i686
make-3.81-20.el6.x86_64
sysstat-9.0.4-27.el6.x86_64
pam-1.1.1-20.el6.x86_64

Below command verifies whether the specified rpms are installed or not.

rpm -q binutils compat-libstdc++-33 compat-libcap1 gcc gcc-c++ glibc glibc-common glibc-devel  \
              glibc-headers kernel-headers ksh libaio libaio-devel unixODBC \
              libgcc libstdc++ libstdc++-devel libxcb libXau libX11 libXi libXtst libXext make  sysstat pam

Any missing rpms can be installed from the OEL Media Pack using below command. I had to install below RPMs on top of the standard install of Linux OS.

rpm -ivh oracle-rdbms-server-12cR1-preinstall-1.0-14.el6.x86_64.rpm
rpm -ivh compat-libstdc++-33-3.2.3-69.el6.i686.rpm
rpm -ivh glibc-devel-2.12-1.166.el6.i686.rpm
rpm -ivh libstdc++-4.4.7-16.el6.i686.rpm
rpm -ivh libstdc++-devel-4.4.7-16.el6.i686.rpm
rpm -ivh libaio-0.3.107-10.el6.i686.rpm
rpm -ivh libaio-devel-0.3.107-10.el6.i686.rpm
rpm -ivh libXext-1.3.2-2.1.el6.x86_64.rpm
rpm -ivh libXext-1.3.2-2.1.el6.i686.rpm
rpm -ivh libX11-1.6.0-6.el6.i686.rpm
rpm -ivh libXtst-1.2.2-2.1.el6.i686.rpm
rpm -ivh libXi-1.7.2-2.2.el6.i686.rpm
rpm -ivh libXau-1.0.6-4.el6.i686.rpm
rpm -ivh libxcb-1.9.1-3.el6.i686.rpm

Create Oracle Users/Groups/Permission:

As root user, Install pre-install RPM, create groups/os users and directory structure. The preinstall RPM creates oinstall/dba groups and oracle user with these groups assigned to it.

rpm -ivh oracle-rdbms-server-12cR1-preinstall-1.0-14.el6.x86_64.rpm
groupadd cisusr
useradd cissys -g cisusr -G oinstall,dba
mkdir /ouaf
chown -R cissys:cisusr /ouaf
chmod -R 775 /ouaf

As cissys user create the subdirectories

cd /ouaf/
   mkdir -p dbclient/12102
   mdkir java
   mkdir hibernate
   mkdir middleware

Prepare the DB Tier:

In this setup, the database and application share the same host. However, the database and application both are installed under their own user id.

Install Oracle Database 12c R1 (12.1.0.2) – under “oracle” os user:
  • Follow the database install guide for Linux platform to install the Oracle database software 12.1.0.2 under /u01/app/oracle base.
  • Use netca to create the listener LISTENER on default port 1521
  • Use dbca to create the database CCBDB.hingu.net Make sure to choose AL32UTF8 character set, Oracle Spatial and Oracle Text software options.

Create CCB specific tablespaces/schemas/roles/permissions:

Connect to database and issue the below SQL statements to create the CCB specific tablespace/roles/users/permissions.

CREATE TABLESPACE CISTS_01 LOGGING DATAFILE '/home/oracle/u02/oradata/CCBDB/datafile/cists01.dbf' SIZE 1024M REUSE AUTOEXTEND ON NEXT
8192K MAXSIZE UNLIMITED EXTENT MANAGEMENT LOCAL UNIFORM SIZE 1M;

CREATE ROLE CIS_USER;
CREATE ROLE CIS_READ;

CREATE USER CISADM IDENTIFIED BY CISADM DEFAULT TABLESPACE CISTS_01
TEMPORARY TABLESPACE TEMP PROFILE DEFAULT;

GRANT UNLIMITED TABLESPACE TO CISADM WITH ADMIN OPTION;
GRANT SELECT ANY TABLE TO CISADM;
GRANT CREATE DATABASE LINK TO CISADM;
GRANT CONNECT TO CISADM;
GRANT RESOURCE TO CISADM;
GRANT DBA TO CISADM WITH ADMIN OPTION;
GRANT CREATE ANY SYNONYM TO CISADM;
GRANT SELECT ANY DICTIONARY TO CISADM;

CREATE USER CISUSER PROFILE DEFAULT IDENTIFIED BY CISUSER DEFAULT
TABLESPACE CISTS_01 TEMPORARY TABLESPACE TEMP;

GRANT SELECT ANY TABLE TO CISUSER;
GRANT CIS_USER TO CISUSER;
GRANT CIS_READ TO CISUSER;
GRANT CONNECT TO CISUSER;

CREATE USER CISOPR PROFILE DEFAULT IDENTIFIED BY OPRPLUS DEFAULT
TABLESPACE CISTS_01 TEMPORARY TABLESPACE TEMP;

GRANT CONNECT,RESOURCE,EXP_FULL_DATABASE TO CISOPR;

CREATE USER CISREAD IDENTIFIED BY CISREAD DEFAULT TABLESPACE
CISTS_01 TEMPORARY TABLESPACE TEMP;

GRANT SELECT ANY TABLE TO CISREAD;
GRANT CIS_READ TO CISREAD;

Prepare the Windows Client machine (windows laptop/desktop):

This step is required if you want to go for the fresh install of application database components. For the demo install, this entire section can be skipped since the demo install is performed by importing schema level export dump that comes as part of the CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm software.

Install JDK 8 Update 66:

Install the JDK under the c:\java or similar folder making sure to choose a path that does not have space in the name of the folder. For e.g, not to install it under the default c:\”program files” folder since the directory “program files” has a space in it. The reason behind is that OraDBI utility does not like it and  on it. Follow the install instruction that comes with the JDK to install it on windows platform.

Install the 32-bit Oracle 12.1.0.2 client:
  • Install the 32-bit Oracle clients on the windows machine. Follow the install document to install oracle client on the windows desktop.
  • After successful install, update the TNS ($ORACLE_HOME/network/admin/tnsnames.ora) entry to point to the CCBDB database created earlier.

CCBDB =
(DESCRIPTION =
(ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.2.15)(PORT = 1521))
(CONNECT_DATA =
(SERVER = DEDICATED)
(SERVICE_NAME = ccbdb.hingu.net)
)
)
  • Update the PATH variable on windows desktop by appending the JDK and perl library as shown below. Go to “Control Pane,l” à“system and Security” à System à click on ‘Advanced System Setting” on left pan à click “Environment variables”. I used <xxx> to hide my actual path.

C:\ProgramData\Oracle\Java\javapath;C:\<xxx>\product\12.1.0\client_1\bin;C:\<xxx>\product\12.1.0\client_1\lib;C:\<xxx>\product\12.1.0\client_1\perl\bin;%SystemRoot%\system32;%SystemRoot%;%SystemRoot%\System32\Wbem;%SYSTEMROOT%\System32\WindowsPowerShell\v1.0\;C:\Program Files (x86)\Windows Imaging\;C:\Java\jdk1.8.0_66\bin
  • Create the new variable PERL5LIB and assign below value.

C:\<xxx>\product\12.1.0\client_1\perl\bin;C:\<xxx>\product\12.1.0\client_1\perl\lib;C:\<xxx>\product\12.1.0\client_1\perl\site\lib
  • Verify the java version and confirm the connection to database from the client machine.


Install the CISADM schema (FW and CCB database components):

This step is required when performing the fresh install of FW and CCB database components as opposed to them importing from the demo export dump that comes with the CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm software.

Uncompress CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm.zip:

Copy the downloaded file CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm.zip to local machine and extract it there. This file contains all the database components required to install the Oracle Utilities Customer Care and Billing database. This will create the directory CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm.

Installing the Oracle Utilities Application Framework Database Component:

On CMD prompt on windows desktop, change the dir to the “install-upgrade” under the folder CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm and execute oraDBI from that directory. Enter the appropriate values on the prompt.

cd C:\..\CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm\FW\FW43010\Install-Upgrade
oraDBI

Name of the target database:CCBDB
Name of the owner of the Database Schema: CISADM
Password for the user (in silent mode)
Location of Java Home: C:\Java\jdk1.8.0_66
Location of UGBU Jar files: C:\CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm\FW\FW43010\jarfiles
Oracle user with read-write privileges to the Database Schema:CISUSER
Oracle user with read-only privileges to the Database Schema:CISREAD
Oracle database role with read-write privileges to the Database Schema:CIS_USER
Oracle database role with read-only privileges to the Database Schema:CIS_READ
Name of the owner of the Database Schema: CISADM
Password for the user (in silent mode)
Password for the user (in silent mode)





Enter Y and continue. At the end, verify that the FW4.3.0.1 database components are installed successfully. It also generates the logfiles into the current directory for any errors/issue troubleshooting.
















Installing Prerequisite Database Single Fixes:


Create a directory c:\dbpatch_tools and copy the FW\FW43010\FW43010-HFix\db_patch_standalone.jar to that directory and extract the db_patch_standalone.jar using below command.

cd c:\dbpatch_tools
jar xvf db_patch_standalone.jar

Set the TOOLSBIN variable and run the ouafDatabasePatch.cmd utility from the ..\FW\FW43010\FW43010-HFix directory.

SET TOOLSBIN=c:\dbpatch_tools\bin
SET JAVA_HOME=C:\Java\jdk1.8.0_66
cd C:\XXX\Documents\Oracle_Utilities\Oracle_Utilities_Software\2.5.0.1\CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm\FW\FW43010\FW43010-HFix
> FW43010-HFix>ouafDatabasePatch.cmd

Enter the target database type (O/M/D) [O]:
Enter the username that owns the schema: CISADM
Enter the password for the cisadm user: <CISADM Password>
Enter the name of the Oracle Database Connection String:ccbapps-node1.hingu.net:1521:CCBDB











Installing the Oracle Utilities Customer Care and Billing Database Component:

From the CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm\CCB\Upgrade\Install-Upgrade, run OraDBI and pass the appropriate values.

cd C:\..\Documents\Oracle_Utilities\Oracle_Utilities_Software\2.5.0.1\CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm\CCB\Upgrade\Install-Upgrade
> OraDBI

Name of the target database:CCBDB
Name of the owner of the Database Schema: CISADM
Password for the user (in silent mode)
Location of Java Home: C:\Java\jdk1.8.0_66
Location of UGBU Jar files: C:\Users\uxcd\Documents\Oracle_Utilities\Oracle_Utilities_Software\2.5.0.1\CCB-V2.5.0.1.0-Oracle-Database-MultiplatForm\CCB\jarfiles
Oracle user with read-write privileges to the Database Schema:CISUSER
Oracle user with read-only privileges to the Database Schema:CISREAD
Oracle database role with read-write privileges to the Database Schema:CIS_USER
Oracle database role with read-only privileges to the Database Schema:CIS_READ
Name of the owner of the Database Schema: CISADM
Password for the user (in silent mode)
Password for the user (in silent mode)

Verify the installation of DB components.

select INSTALL_OPT_ID, RELEASE_ID, VERSION, PRODUCT_NAME, patch_nbr, update_dttm from cisadm.CI_INSTALL_PROD order by UPDATE_DTTM ;

alter session set nls_date_format='mm/dd/yyyy hh24:mi:ss';
select instl_log_id, TARGET_VER_ID, UPG_COUNT, END_DTTM, VERSION, owner_flg from cisadm.ci_ut_instl;






Post-Install tasks:

Enable USER_LOCK Package. For inbound web services to work the USER_LOCK must be enabled at the database level. This is a one-time task. Login as SYS user and execute $ORACLE_HOME/rdbms/admin/userlock.sql. Grant permission by running the sql -- grant execute on USER_LOCK to public;

Take the full export of database at this point. This exported dump can be used instead of going through all these steps to perform the fresh install in case of re-installation.

expdp system/oracle LOGFILE="CCBDB_FULL_EXPDP.log" DUMPFILE="CCBDB_FULL_EXPDP_%U.dmp" parallel=8 DIRECTORY=DATA_PUMP_DIR FULL=Y

Install 3rd Party software (Application Prerequisite Software):

All these steps are performed on the Linux server under “cissys” user.

Setup the Environment Variables for cissys user:

(a) Connect as root and update /etc/passwd file to change the default shell of cissys user to /bin/ksh

oracle:x:54321:54321::/home/oracle:/bin/ksh
cissys:x:54322:54323::/home/cissys:/bin/ksh

(b) Create the .profile under the /home/cissys with below variables.

ORACLE_CLIENT_HOME=/ouaf/dbclient/12102
export ORACLE_HOME=$ORACLE_CLIENT_HOME
JAVA_HOME=/ouaf/java/jdk1.8.0_66
export JAVA_HOME
HIBERNATE_JAR_DIR=/ouaf/hibernate
export HIBERNATE_JAR_DIR

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$ORACLE_HOME/lib:$ORACLE_HOME/perl/lib:/ouaf/ccb/HINGU/runtime:/lib

PATH=$JAVA_HOME/bin:$JAVA_HOME/lib:$ORACLE_HOME/bin:$PATH:$HOME/bin:.
export PATH

BEADIR=/ouaf/middleware/wlserver_12.1.3
WL_HOME=/ouaf/middleware/wlserver_12.1.3/wlserver
export BEADIR
export WL_HOME

umask 022
set +o noclobber

(c) Modify the .bash_profile under the /home/cissys file with the same variables as above
(d) Source the environment.

Install Oracle 12.1.0.2 client:

Connect as cissys and execute the <software_location>/client/runInstaller and select the "Administrative" option. After the successful install of 12cR1 client, edit the tnsnames.ora file with the connect descriptor defined as below:

CCBDB =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = 192.168.2.15)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = ccbdb.hingu.net)
           )
  )

Test the connection to the database using the client side SQLPLUS and TNS entries.

Install JDK and JRE:

jdk and jre files required (downloaded from Oracle):
                jre-7u79-linux-x64.gz
                jdk-8u66-linux-x64.gz


(1) Uncompress these files under the /ouaf/java folder:

       cp *.gz /ouaf/java/
       cd /ouaf/java/
       gunzip jdk-8u66-linux-x64.gz
       tar xvf jdk-8u66-linux-x64
       gunzip jre-7u79-linux-x64.gz
       tar xvf jre-7u79-linux-x64

(2) Verify the installation

       [cissys@ccbapps-node1 jdk1.8.0_66]$ java -version
       java version "1.8.0_66"
       Java(TM) SE Runtime Environment (build 1.8.0_66-b17)
       Java HotSpot(TM) 64-Bit Server VM (build 25.66-b17, mixed mode)
       [cissys@ccbapps-node1 jdk1.8.0_66]$



Install Hibernate 4.1.0:

To install hibernate 4.1.0

(1) Download the hibernate-release-4.1.0.Final.zip from http://sourceforge.net/projects/hibernate/files/hibernate4/
(2) Connect as cissys user and un-jar the files

cd /tmp
jar xvf /software/hibernate/hibernate-release-4.1.0.Final.zip

(3) Copy all the jar files from /tmp/hibernate-release-4.1.0.Final to /ouaf/hibernate

cp /tmp/hibernate-release-4.1.0.Final/lib/optional/ehcache/ehcache-core-2.4.3.jar $HIBERNATE_JAR_DIR
cp /tmp/hibernate-release-4.1.0.Final/lib/optional/ehcache/hibernate-ehcache-4.1.0.Final.jar $HIBERNATE_JAR_DIR
cp /tmp/hibernate-release-4.1.0.Final/lib/required/hibernate-commons-annotations-4.0.1.Final.jar $HIBERNATE_JAR_DIR
cp /tmp/hibernate-release-4.1.0.Final/lib/required/hibernate-core-4.1.0.Final.jar $HIBERNATE_JAR_DIR
cp /tmp/hibernate-release-4.1.0.Final/lib/required/hibernate-jpa-2.0-api-1.0.1.Final.jar $HIBERNATE_JAR_DIR
cp /tmp/hibernate-release-4.1.0.Final/lib/required/javassist-3.15.0-GA.jar $HIBERNATE_JAR_DIR
cp /tmp/hibernate-release-4.1.0.Final/lib/required/jboss-logging-3.1.0.CR2.jar $HIBERNATE_JAR_DIR
cp /tmp/hibernate-release-4.1.0.Final/lib/required/jboss-transaction-api_1.1_spec-1.0.0.Final.jar $HIBERNATE_JAR_DIR

Install/configure  Weblogic Server:

(1) unzip the downloaded WebLogic 12.1.3 generic software (fmw_12.1.3.0.0_wls.jar) and copy it in stage location (for e.g, /tmp)

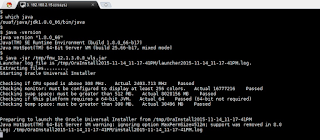

(2) Verify that the java is pointing the right jdk before start installing weblogic. Since the JAVA_HOME is already defined in the .profile, it should points to the correct jdk.
(3) Execute the install program from the X-client/terminal as cissys

java -jar /tmp/fmw_12.1.3.0.0_wls.jar

Enter the appropriate values for the variables on the install screens as shown below












(4) After successful install of weblog, create the base domain with default port. (7001). The default security realm myrealm will register with this base domain and port.

cd /ouaf/middleware/wlserver_12.1.3/wlserver/common/bin
./config.sh

admin: system

password: any alphanumeric

Enter the appropriate values for the variables on the install screens as shown below












Install Application FW 4.3.0.1:

All these steps are performed on the Linux server under “cissys” user.

(a) Un-archive the jar files into the staging location (/home/cissys/temp) from the software location. This will inflate FW-V4.3.0.1.0-MultiPlatform.jar file in the current directory /home/cissys/temp.


source ~/.profile
mkdir /home/cissys/temp
cd /home/cissys/temp
jar xvf /softwares/2.5.0.1/V78110-01.zip

Un-Archive the above inflated file again. It will un-archive the files in the FW-V4.3.0.1.0-SP1 folder.

jar -xvf FW-V4.3.0.1.0-MultiPlatform.jar

(b) Change directory to FW-V4.3.0.1.0-SP1 and execute the script install.sh. Provide all the information as requested. The final output looks like below.


************************************
* Environment Installation Options *
************************************

 1. Environment ID, Roles, Third Party Software Configuration
       Environment ID:                                    11111111
       Server Roles:                                      batch,online
       Oracle Client Home Directory:                      /ouaf/dbclient/12102
       Web Java Home Directory:                           /ouaf/java/jdk1.8.0_66
       Hibernate JAR Directory:                           /ouaf/hibernate
       ONS JAR Directory:
       Web Application Server Home Directory:             /ouaf/middleware/wlserver_12.1.3/wlserver
       WebLogic Server Thin-Client JAR Directory:
       ADF Home Directory:
       OIM OAM Enabled Environment:                       false

 2. Keystore Options
       Import Keystore Directory:
       Store Type:                                        JCEKS
       Alias:                                             ouaf.system
       Alias Key Algorithm:                               AES
       Alias Key Size:                                    128
       HMAC Alias:                                        ouaf.system.hmac
       Padding:                                           PKCS5Padding
       Mode:                                              CBC

50. Environment Installation Options
       Environment Mount Point:                           /ouaf/ccb
       Log Files Mount Point:                             /ouaf/ccb/sploutput
       Environment Name:                                  HINGU
       Web Application Server Type:                       WLS
       Install Application Viewer Module:                 true
       Install Demo Generation Cert Script:               true
       Install Sample CM Source Code:                     true

Each item in the above list should be configured for a successful install.

Choose option (1,2,50, <P> Process, <X> Exit):


(c) Process the data after verifying the final inputs.


Each item in the above list should be configured for a successful install.

Choose option (1,2,50, <P> Process, <X> Exit): P

entering "P" issued the below error because the WEB_SERVER_HOME is incorrectly entered.

Choose option (1,2,50, <P> Process, <X> Exit): P

>>> Checking Java version ... done.
>>> Checking WEB_SERVER_HOME ... done.
>>> Checking WLTHINT3CLIENT_JAR_DIR ... done.
>>> Checking KS_ALIAS_KEYSIZE ... done.

>>> Calculating additional variables ... done.
>>> Writing variables to /home/cissys/temp/FW-V4.3.0.1.0-SP1/tmp/2015-11-15-1421/ENVIRON.INI ... done.

151115:144201 <info>  Creating Keystore Password File.
151115:144201 <info>  Creating Keystore File Alias.
151115:144202 <info>  Keystore creation completed.
151115:144202 <info>  Creating Keystore File HMAC Alias.
151115:144203 <info>  Keystore creation completed.

(d) Environment Configuration screen. Enter the value for each of the environment configuration options. The final output in my case looks like this.


***********************************
* Environment Configuration HINGU *
***********************************

 1. Environment Description
       Environment Description:                           CCB lab Environment - Bhavin Hingu

 2. Business Application Server Configuration
       Business Server Host:                              ccbapps-node1.hingu.net
       WebLogic Server Name:                              myserver
       Business Server Application Name:                  SPLService
       MPL Admin Port Number:                             6502
       MPL Automatic startup:                             false

 3. Web Application Server Configuration
       Web Server Host:                                   ccbapps-node1.hingu.net
       WebLogic SSL Port Number:                          6501
       WebLogic Console Port Number:                      6500
       WebLogic Additional Stop Arguments:                -Dweblogic.security.TrustKeyStore=DemoTrust
       Web Context Root:                                  ouaf
       WebLogic JNDI User ID:                             system
       WebLogic JNDI Password:                            ENCKS(DOnPGxYgu+qi2MserN3qtkussw7LXZLsIz8wHfv8Q24=)
       WebLogic Admin System User ID:                     {3DES}Tpd54/cr91w=
       WebLogic Admin System Password:                    {3DES}qjs1gbB9rnuRKJJK6HmZRQ==
       WebLogic Server Name:                              myserver
       Web Server Application Name:                       SPLWeb
       Deploy Using Archive Files:                        true
       Deploy Application Viewer Module:                  true
       Enable The Unsecured Health Check Service:         false
       MDB RunAs User ID:
       Super User Ids:                                    SYSUSER

 4. Database Configuration
       Application Server Database User ID:               CISADM
       Application Server Database Password:              ENCKS(HA5V9cCX4HPAs5x4G573/Wk+Lvj+8hXYtWU3CryWfcI=)
       MPL Database User ID:                              CISADM
       MPL Database Password:                             ENCKS(oldVKGrTsQHQra15nMUvTvXpm9SwC8lqS6Npy5mK7Vg=)
       XAI Database User ID:                              CISADM
       XAI Database Password:                             ENCKS(4ZXPCPUQlRvaEzeUw0Gx6JOD6G+TtF8Loj0UKn//AlE=)
       Batch Database User ID:                            CISADM
       Batch Database Password:                           ENCKS(KlZzb2d5DA/3ojFN36xZE3KQ6zonRqnjXVFSEa00ESE=)
       Database Name:                                     CCBDB.hingu.net
       Database Server:                                   ccbapps-node1.hingu.net
       Database Port:                                     1521
       ONS Server Configuration:
       Database Override Connection String:
       Oracle Client Character Set NLS_LANG:              AMERICAN_AMERICA.AL32UTF8

 5. General Configuration Options
       Batch RMI Port:                                    6540
       RMI Port number for JMX Business:
       RMI Port number for JMX Web:
       JMX Enablement System User ID:
       JMX Enablement System Password:
       Batch Mode:                                        DISTRIBUTED
       Coherence Cluster Name:
       Coherence Cluster Address:
       Coherence Cluster Port:
       Coherence Cluster Mode:                            dev

 6. SSL Certificate Keystore
       Certificate Keystore Type:                         DEMO
       Identify Keystore File:
       Identify Keystore File Type:                       jks
       Identify Keystore Password:                        {3DES}qjs1gbB9rnuRKJJK6HmZRQ==
       Identity Private Key Alias:                        ouaf_demo_cert
       Trust Keystore File:
       Trust Keystore File Type:                          jks
       Trust Keystore Password:                           {3DES}qjs1gbB9rnuRKJJK6HmZRQ==
       Trust Private Key Alias:                           ouaf_demo_cert

Each item in the above list should be configured for a successful install.

Choose option (1,2,3,4,5,6, <P> Process, <X> Exit):

(e) Enter “P” to process the configuration. Since this is the first ever installation of Oracle Utilities, it will prompt to run a script as root to create the /etc/cistab file.

Choose option (1,2,3,4,5,6, <P> Process, <X> Exit): P
Entered "P" flag to process.

Block  4: Application Server Database User ID           Warning This database option have been changed. Since the keystore and encrypted data in the database must be compatible, you have two options:
Block  4: Application Server Database User ID           Warning - Load the compatible keystore into the environment using the initialSetup.sh|cmd -s
Block  4: Application Server Database User ID           Warning - Keep the current keystore, run the keystore reset routine, and re-enter any encrypted information online through the application, and re-generate the Database hashes.
.....
.....
.....

>>> Checking ONSCONFIG ... done.
>>> Checking DB_OVERRIDE_CONNECTION ... done.

>>> Calculating additional variables ... done.
>>> Backup /home/cissys/temp/FW-V4.3.0.1.0-SP1/tmp/2015-11-15-1421/ENVIRON.INI to /home/cissys/temp/FW-V4.3.0.1.0-SP1/tmp/2015-11-15-1421/ENVIRON.INI_20151115_1520 ... done.
>>> Writing variables to /home/cissys/temp/FW-V4.3.0.1.0-SP1/tmp/2015-11-15-1421/ENVIRON.INI ... done.

151115:152012 <info>  Create directory /ouaf/ccb/sploutput/HINGU
151115:152012 <info>  /etc/cistab file does not exist. Create it if permissions will allow.
151115:152012 <info>  Cannot create /etc/cistab for writing.

Please, execute the script cistab_HINGU.sh in /home/cissys/temp/FW-V4.3.0.1.0-SP1 directory with root permissions
and confirm with "Y" when ready to resume the current installation process,
any other key will stop the current installation process.
Enter Choice :

(f) Run the prompted script as root.

From the another window, connect as root and run the cistab_HINGU.sh script to create/setup the /etc/cistab file
[root@ccbapps-node1 ~]#
[root@ccbapps-node1 ~]# /home/cissys/temp/FW-V4.3.0.1.0-SP1/cistab_HINGU.sh
Adding the new environment HINGU to /etc/cistab now
Finished successfully.
[root@ccbapps-node1 ~]#

(g) Enter the choice Y and proceed further

……
……
…..

151115:153419 <info>  151115:153419 <info>
151115:153419 <info>  151115:153419 <info>  Initial Setup execution time:  56 seconds.
151115:153419 <info>  151115:153419 <info>
151115:153419 <info>  151115:153419 <info>  Initial Setup completed successfully.
151115:153419 <info>  151115:153419 <info>
151115:153419 <info>  initialSetup completed.
151115:153419 <info>  FW installation completed successfully, see the log /home/cissys/temp/FW-V4.3.0.1.0-SP1/install_FW_HINGU.log
Executing: /ouaf/ccb/HINGU/bin/splenviron.sh -e HINGU
JAVA_HOME=/ouaf/java/jdk1.8.0_66
WL_HOME=/ouaf/middleware/wlserver_12.1.3/wlserver
Version ................ (SPLVERSION) : V4.3.0.1.0
Database Type ............... (CMPDB) : ORACLE
Environment Name ....... (SPLENVIRON) : HINGU
Environment Code Directory (SPLEBASE) : /ouaf/ccb/HINGU
App Output Dir - Logs ... (SPLOUTPUT) : /ouaf/ccb/sploutput/HINGU
[cissys@ccbapps-node1 HINGU]$

Screenshots:











Install Prerequisite Patches CCB-V2.5.0.1.0-FWPREREQ-MultiPlatform.zip:

All these steps are performed on the Linux server under “cissys” user.

(a) Un-archive the jar files into the staging location (/home/cissys/temp) from the software location. This will inflate CCB-V25010-FW-PREREQ-MultiPlatform.jar file in the current directory /home/cissys/temp. Un-jar the CCB-V25010-FW-PREREQ-MultiPlatform.jar file which will create the FW-V4.3.0.1.0-Rollup directory in the current directory.


source ~/.profile
cd /home/cissys/temp
jar xvf /softwares/2.5.0.1/V78111-01.zip
jar xvf jar -xvf CCB-V25010-FW-PREREQ-MultiPlatform.jar

(b) Apply the patch after setting the environment.

$SPLEBASE/bin/splenviron.sh -e HINGU
cd /home/cissys/temp/FW-V4.3.0.1.0-Rollup/Application

Execute the group installation script:

chmod a+x installSFgroup.sh
chmod a+x FW*/*.sh
./installSFgroup.sh






Install CCB-V2.5.0.1:

All these steps are performed on the Linux server under “cissys” user.

(a) Un-archive the jar files into the staging location (/home/cissys/temp) from the software location. This will inflate CCB-V2.5.0.1.0-MultiPlatform.jar file in the current directory /home/cissys/temp. Further un-jar the CCB-V2.5.0.1.0-MultiPlatform.jar file which will create the CCB.V2.5.0.1.0 directory in the current directory.


source ~/.profile
cd /home/cissys/temp
jar xvf /softwares/2.5.0.1/V78113-01.zip
jar xvf CCB-V2.5.0.1.0-MultiPlatform.jar

(b) Apply the patch after setting the environment.

$SPLEBASE/bin/splenviron.sh -e HINGU
cd /home/cissys/temp/CCB.V2.5.0.1.0

Execute the group installation script:

chmod a+x install.sh
./install.sh

(c) Press “Y” followed by “P” to finish the installation.

[cissys@ccbapps-node1 CCB.V2.5.0.1.0]$ /ouaf/ccb/HINGU/bin/splenviron.sh -e HINGU
JAVA_HOME=/ouaf/java/jdk1.8.0_66
WL_HOME=/ouaf/middleware/wlserver_12.1.3/wlserver
Version ................ (SPLVERSION) : V4.3.0.1.0
Database Type ............... (CMPDB) : ORACLE
Environment Name ....... (SPLENVIRON) : HINGU
Environment Code Directory (SPLEBASE) : /ouaf/ccb/HINGU
App Output Dir - Logs ... (SPLOUTPUT) : /ouaf/ccb/sploutput/HINGU
[cissys@ccbapps-node1 HINGU]$ cd /home/cissys/temp/CCB.V2.5.0.1.0
[cissys@ccbapps-node1 CCB.V2.5.0.1.0]$ chmod a+x install.sh
[cissys@ccbapps-node1 CCB.V2.5.0.1.0]$ ./install.sh
151115:161633 <info>
151115:161633 <info>  You are about to install the product CCB into the environment HINGU located at /ouaf/ccb/HINGU
151115:161633 <info>  Make sure you executed splenviron.sh -e HINGU prior to installation process.
151115:161633 <info>
Do you wish to proceed with the installation? (Y,N): Y
151115:161805 <info>  User chose to proceed with the installation
151115:161805 <info>  Bringing environment HINGU down
151115:161805 <info>  Start the installation process

***********************************
* Environment Configuration HINGU *
***********************************

Each item in the above list should be configured for a successful install.

Choose option (, <P> Process, <X> Exit): P


>>> Calculating additional variables ... done.
>>> Backup /ouaf/ccb/HINGU/etc/ENVIRON.INI to /ouaf/ccb/HINGU/etc/ENVIRON.INI_20151115_1618 ... done.
>>> Writing variables to /ouaf/ccb/HINGU/etc/ENVIRON.INI ... done.

.........
.........
.........

151115:163012 <info>  151115:163012 <info>
151115:163012 <info>  151115:163012 <info>  BUILD SUCCESSFUL
151115:163012 <info>  151115:163012 <info>  Total time: 5 seconds
151115:163012 <info>  151115:163012 <info>  Build was successful.
151115:163012 <info>  151115:163012 <info>
151115:163012 <info>  151115:163012 <info>  Initial Setup execution time:  7 minutes 24 seconds.
151115:163012 <info>  151115:163012 <info>
151115:163012 <info>  151115:163012 <info>  Initial Setup completed successfully.
151115:163012 <info>  151115:163012 <info>
151115:163012 <info>  initialSetup completed.
151115:163012 <info>  CCB installation completed successfully, see the log /home/cissys/temp/CCB.V2.5.0.1.0/install_CCB_HINGU.log
Executing: /ouaf/ccb/HINGU/bin/splenviron.sh -e HINGU
JAVA_HOME=/ouaf/java/jdk1.8.0_66
WL_HOME=/ouaf/middleware/wlserver_12.1.3/wlserver
Version ................ (SPLVERSION) : V4.3.0.1.0
Database Type ............... (CMPDB) : ORACLE
Environment Name ....... (SPLENVIRON) : HINGU
Environment Code Directory (SPLEBASE) : /ouaf/ccb/HINGU
App Output Dir - Logs ... (SPLOUTPUT) : /ouaf/ccb/sploutput/HINGU
[cissys@ccbapps-node1 HINGU]$














Post-Install Tasks:

All these steps are performed on the Linux server under “cissys” user.

(a) Generate the Demo certificate using the below command (as per the install guide).

/ouaf/ccb/HINGU/bin/splenviron.sh -e HINGU
perl $SPLEBASE/bin/demo_gen_cert.plx

(b) Re-generate the EAR files by running configureEnv.sh followed by initialSetup.sh without modifying any parameters.


/ouaf/ccb/HINGU/bin/splenviron.sh -e HINGU

cd /ouaf/ccb/HINGU/bin
./configureENV.sh

./initialSetup.sh

(c) Re-generate the hash values for all the users.

perl $SPLEBASE/bin/run_java_standalone.plx  com.splwg.shared.common.ChangeCryptographyKey -h -l

(d) Start the environment.

/ouaf/ccb/HINGU/bin/splenviron.sh -e HINGU

spl.sh -a start

tail -f /ouaf/ccb/HINGU/logs/system/weblogic_current.log

(e) Set the password of SYSUSER application account.
I could not login using this user very first time after providing the default password. I was able to login after setting it through the weblogic admin console.

Login to the weblogic console as “system” with default password. Change the SYSUSER password and restart the SPL environment.

/ouaf/ccb/HINGU/bin/splenviron.sh -e HINGU
spl.sh -a stop
spl.sh -a start

(f) Login URLs:

Weblogic Admin URL: https://ccbapps-node1.hingu.net:6500/console

ouaf login page: https://ccbapps-node1.hingu.net:6501/ouaf/loginPage.jsp














Thank You,

Bhavin Hingu
Bhavin@Hingu.net
http://www.OracleArchitect.com
http://www.OracleDBA.org

Posted by at

14 comments:

  1. UnknownFebruary 29, 2016 at 11:46 AM

    Thanks a lot for sharing...

    ReplyDelete
    Replies
    1. Bhavin HinguFebruary 29, 2016 at 12:51 PM

      thank you!

      Delete
    2. UnknownAugust 27, 2018 at 8:02 AM

      Hi, I was not able to start the server by using spl.cmd start . how to connect the server to application. By default I am able to login using startweblogic command and on port 7001. how to modify settings to connect to CCB application

      Delete
  2. UnknownMarch 2, 2016 at 10:55 AM

    Hi Bhavin,

    I followed the "STEPS" and successfully installed the demo CC&B. A great blog and thanks a lot again! Great if you can publish some blog about USING the demo CC&B from user point of view:-)

    Regards

    ReplyDelete
  3. UnknownMarch 2, 2016 at 10:55 AM

    Hi Bhavin,

    I followed the "STEPS" and successfully installed the demo CC&B. A great blog and thanks a lot again! Great if you can publish some blog about USING the demo CC&B from user point of view:-)

    Regards

    ReplyDelete
    Replies
    1. Bhavin HinguMarch 4, 2016 at 7:25 AM

      thanks Frank. time is a constraint but will try to post something in that regards as well.

      Delete
  4. UnknownJune 24, 2016 at 7:40 AM

    Hi Bhavin, At First,Thanks for your nice post. Its useful.
    I have followed all the steps and able to install everything successfully but when i start the server, it immediately stops.
    If i start using start.cmd -a start, then theadpool server & MPL servers are getting started with out any issues but the main server doesn't start. Do you know what can be the problem ??

    ReplyDelete
  5. UnknownJuly 19, 2016 at 7:27 AM

    This is really comprehensive document. Installation manual may leads to ambiguities. I followed installation documents and followed this document in parallel. I was sucessful for installing CC&B in one go.

    ReplyDelete
  6. maddyOctober 11, 2016 at 12:58 PM

    Hi Bhavin,
    I followed the mentioned steps but getting error running the step:Install Application FW 4.3.0.1:
    below is the error

    161011:145334 Error occured while running C:\ouaf\ccb\CCB2502\product\apache-ant\bin\ant -f C:\ouaf\ccb\CCB2502\etc\jarservice.xml:
    Output is The input line is too long.
    The syntax of the command is incorrect.

    Please help me out.

    ReplyDelete
  7. SidharthOctober 27, 2017 at 12:13 AM

    This comment has been removed by the author.

    ReplyDelete
  8. SidharthOctober 27, 2017 at 12:14 AM

    hi Bhavin,
    what is the password you have set for weblogic console?
    i am facing issue as below.

    Authentication denied: Boot identity not valid. The user name or password or both from the boot identity file (boot.properties) is not valid. The boot identity may have been changed since the boot identity file was created. Please edit and update the boot identity file with the proper values of username and password. The first time the updated boot identity file is used to start the server, these new values are encrypted.

    ReplyDelete
  9. DhivyaApril 25, 2018 at 12:25 AM

    Excellent and very cool idea and the subject at the top of magnificence and I am happy to this post..Interesting post! Thanks for writing it.What's wrong with this kind of post exactly? It follows your previous guideline for post length as well as clarity..
    Billing Software in chennai

    ReplyDelete
  10. Vikas SagarApril 29, 2019 at 4:44 AM

    Hi,

    Very Good Article, Could you please help me steps how make clone from Production instance for Oracle Utilities Customer Care and Billing V2.5.0.2.

    Thanks
    Vikas

    ReplyDelete
  11. AlkaJune 7, 2021 at 11:22 PM

    3. Information shared here is highly appreciated. Your article has inspired many of us to learn this. You have shared your immense knowledge on Oracle C2M .Recently i came to know MaxMunus offers the best Oracle C2M training across the globe. If you come across anyone looking for training, you can ask him to contact them directly. They are reachable at:-
    Oracle C2M training

    ReplyDelete

Subscribe to: Post Comments (Atom)
